Eliminating emissions from industrial wastewater

Electric air treatment for VOCs, H₂S and odor-causing gases from industrial wastewater handling, built for variable loads and compact installation.
Learn more
Arrow downArrow down
99.6%
Average H2S removal
98.2%
Average VOC removal
80x
Less odor than existing biofilter

Industrial wastewater air streams are variable and compound-specific

Storage, buffering and treatment of industrial wastewater can release a changing mix of VOCs, H₂S and odor-causing gases. Concentrations may fluctuate with production cycles, wastewater composition, temperature and ventilation conditions.

The Dual Threat: Odor and Pollution

The air released from wastewater facilities typically contains a dangerous cocktail of gases, including hydrogen sulfide (H₂S) and volatile organic compounds (VOCs). While H₂S is known for causing severe odor complaints and operational constraints, VOCs pose a more insidious threat. They are a major source of air pollution, linked to cancer and respiratory diseases, and have a climate impact 20 times that of CO₂. Crucially, industrial wastewater can introduce Substances of Very High Concern (SVHCs/ZZS) that demand mandatory minimization.

The Breakthrough: Advanced Oxidation Technology

The solution lies in shifting towards adaptive, electrically-driven, and actively controlled air treatment systems. Luper’s AirShield uses patented Gas-phase Advanced Oxidation (GPAO) to effectively clean exhaust air. This process mimics and accelerates nature's self-cleaning mechanism by a million times.

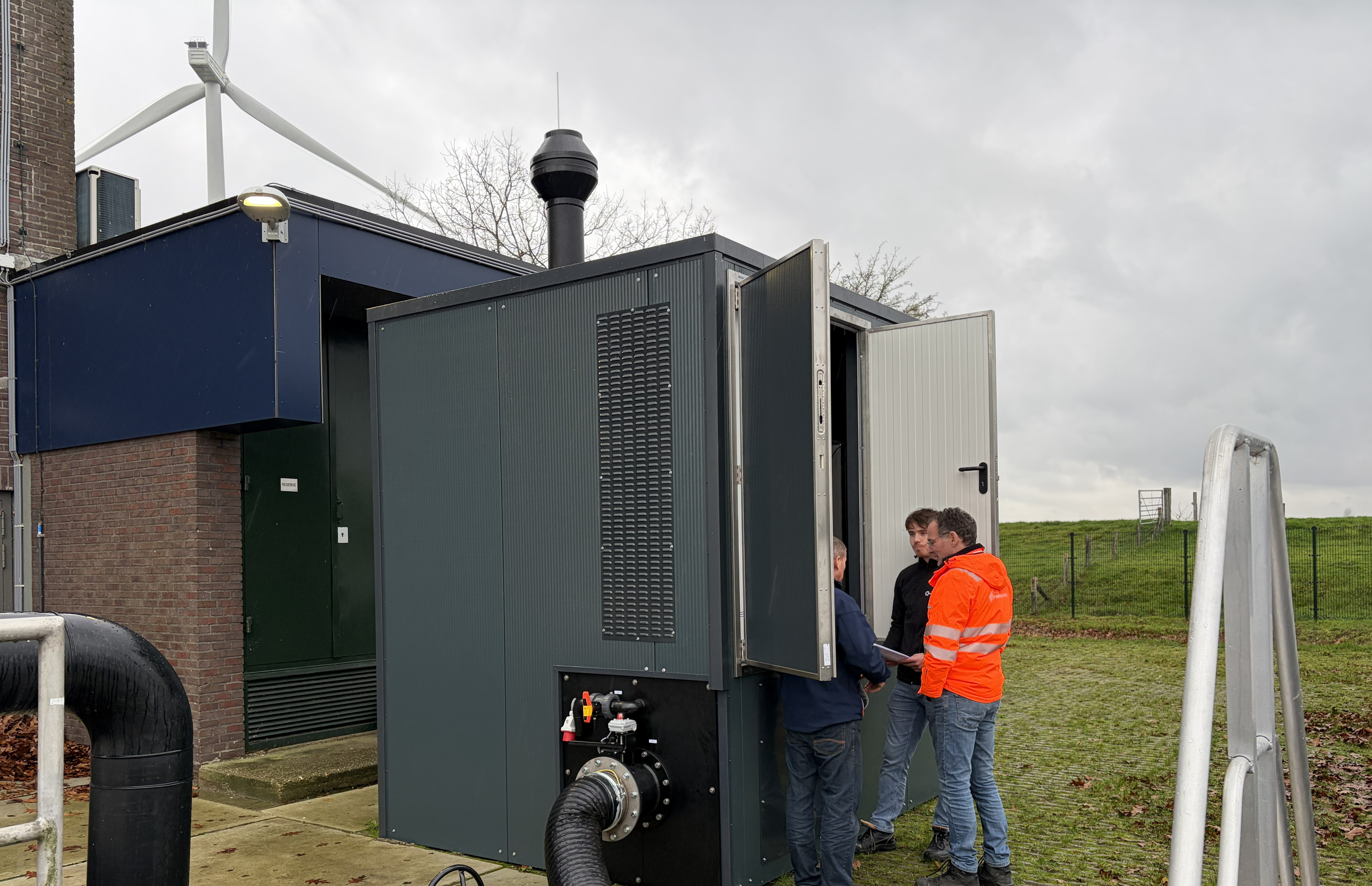

In a field pilot at Moerdijk Pumping Station, AirShield demonstrated 99.6% H₂S removal and 98.2% total VOC removal, with up to 100% removal of key SVHCs.

“In the past, when we experienced odor issues, they were mainly caused by dimethyl sulfide, mercaptans, and other sulfur-containing emissions from our sludge treatment.

Luper’s AirShield removes these compounds with 100% effectiveness.”
Marijn van de Ven
Process Technologist,
Hoogheemraadschap de Stichtse Rijnlanden

What this means for operators

With our AirShield, you are able to:
‍
- Reduce VOC, H₂S and odor emissions from variable wastewater airflows
- Handle changing production cycles and peak concentrations
- Support ZZS/SVHC emission reduction with measurable performance data

Why AirShield?
Biofilter
Carbon filter
AirShield
Works immediately
CheckmarkCheckmarkCheckmark
Treats mixed compounds
CheckmarkCheckmarkCheckmark
Electric-based
CheckmarkCheckmarkCheckmark
No chemical dosing
CheckmarkCheckmarkCheckmark
Sensor driven adaptation
CheckmarkCheckmarkCheckmark
Want to assess emissions at your facility?
Request assessment
Right arrow iconRight arrow icon
FAQ
Which pollutants does the AirShield remove (H₂S, DMS, VOCs)?
Chevron arrow down
The AirShield is designed to treat toxic and odorous gases at wastewater treatment plants and other industrial facilities. Target gases include sulfur-containing compounds such as H₂S and dimethyl sulfide (DMS), amines, aldehydes, terpenes, aromatics and other odors and (very) volatile organic compounds (VOCs).

A stand-alone unit can effectively treat peak concentrations of up to several hundreds parts per million (e.g. 750 ppm for H₂S). We offer site assessments to confirm that the AirShield is suitable for your specific airflow.
What removal efficiency and outlet concentrations can I expect?
Chevron arrow down
The AirShield will be configured to suit your site-specific requirements, such as the maximum residual emission and/or required removal rate. In field operations at wastewater treatment plants and pumping stations the AirShield shows removal rates of >99% with residual odor concentration of <75 ouₑ/m³.

We offer assessments to determine the expected performance on your airflow
How is the AirShield’s performance verified?
Chevron arrow down
The AirShield has built-in sensor slots for (remote) output and status monitoring. We provide data-enabled services such as emission monitoring and reporting, performance optimization and predictive maintenance.

If desired, we offer onsite pilots and demonstrations to validate performance under real operating conditions.
How does the AirShield clean exhaust air?
Chevron arrow down
The AirShield cleans air based on our patent pending gas-phase advanced oxidation process (GPAO). The goal of our GPAO process is to neutralize toxic and odorous gases, turn these neutralized gases into particles and then remove the particles from the air.

This sequence is completed because particles are easier (and thus more cost effective) to treat than gases.
What is the total cost of ownership (TCO) of the AirShield?
Chevron arrow down
The TCO depends primarily on treated airflow (m³/h), pollutant load and variability (e.g., H₂S/DMS peaks), operating hours, and the required outlet target. Operating expenses are typically made up of electricity consumption (Wh/m³), planned maintenance and service, and consumables such as filters and sensors.

During a site assessment we provide a TCO estimate for your location, including typical and peak energy use, expected maintenance intervals, and consumables, so you can compare CAPEX and OPEX against alternatives such as activated carbon, biofilters, or scrubbers.
How much electricity does the AirShield use?
Chevron arrow down
Electricity use depends on airflow rate, inlet concentration, temperature and humidity. Typical ranges are 0.5 – 1.5 Wh/m³ for low concentration airflows at up to 5 Wh/m³ for high concentration airflows (incl. fan).

The AirShield minimizes energy consumption by matching operating power to pollutant concentration based on sensor feedback. Using the specifics of your airflow we provide typical and peak energy consumption estimates.
Does the AirShield require (storage of) chemicals?
Chevron arrow down
No, the AirShield uses electricity and the water and oxygen naturally present in the air to generate reactive species in-situ for oxidation. Any residual reactive species are converted downstream using an integrated catalyst.
What maintenance is required and does it require special staff training?
Chevron arrow down
The yearly maintenance is designed to be straightforward and can be performed by a trained operator, a local service partner, or our team, depending on your preferences.

Tasks include inspection, checking sensors, and scheduled replacement of consumable components. We can provide service agreements and planned maintenance to ensure reliable performance. If desired the AirShield can be equipped with sensors for predictive maintenance.
